Clamping and Adapter Plate

Clamping table

28-11080-000

1000x800x25mmfurther   dimensions on request

140

Adapter plate

28-13525-000

DIN2633   DN15-DN200

12

for flange

DIN2632 DN200

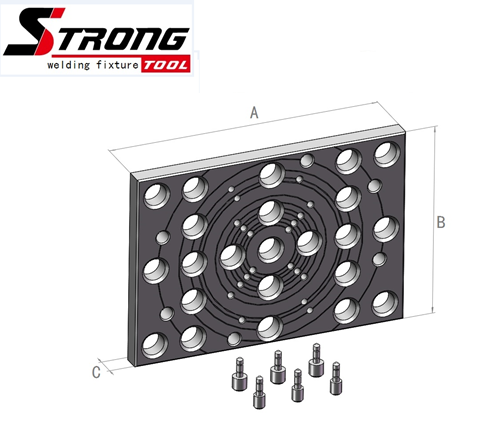

Size: 350 x 250   x 25mm

locking bolt:

2 x Ø 13.8 mm; 2   x Ø 17.8 mm

2 x Ø 21.8 mm; 2   x Ø 25.8 mm

Adapter plate

28-15535-000

DIN2632   DN200-DN400

30

For flange

DIN2633   DN15-DN400

DIN2634   DN200-DN400

DIN2635   DN50-DN400

Size: 550 x 350   x 25mm,

locking bolt:

2 x Ø 13.8 mm ;2   x Ø 17.8 mm

2 x Ø 21.8 mm ;2   x Ø 25,8 mm

2 x Ø 29.8 mm ;2   x Ø 32.8 mm

2 x Ø 35.8 mm ;2   x Ø 38.8 mm
