Product Details

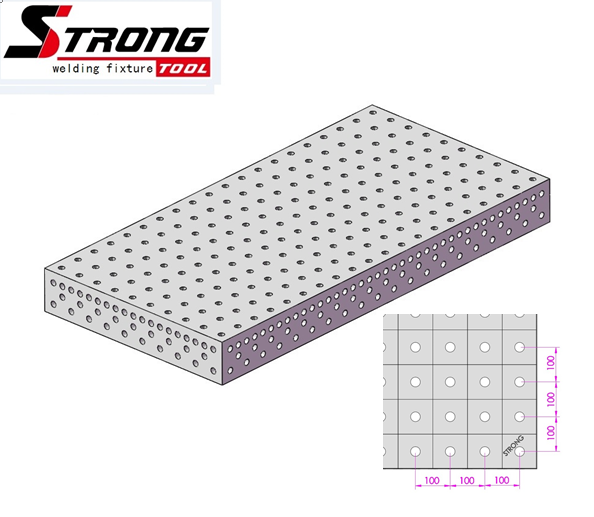

28 System 3D General Line Table
Picture | Part No. | Size(mm) | Description | NW(kg) |
Basic Type | 28-01010-000 | 1000x1000x200 | B type 3D Steel Work Table，grid hole and line 100x100 | 310 |
28-01212-000 | 1200x1200x200 | 442 | ||
28-01510-000 | 1500x1000x200 | 485 | ||
28-01515-000 | 1500x1500x200 | 673 | ||
28-02010-000 | 2000x1000x200 | 578 | ||
28-02412-000 | 2400x1200x200 | 812 | ||
28-03015-000 | 3000x1500x200 | 1230 | ||
28-04020-000 | 4000x2000x200 | 2150 | ||
Dimension Type | 28-01010-100 | 1000x1000x200 | D type 3D Steel Work Table，with 4 side mm scale | 310 |
28-01212-100 | 1200x1200x200 | 442 | ||
28-01510-100 | 1500x1000x200 | 485 | ||
28-01515-100 | 1500x1500x200 | 673 | ||
28-02010-100 | 2000x1000x200 | 578 | ||
28-02412-100 | 2400x1200x200 | 812 | ||
28-03015-100 | 3000x1500x200 | 1230 | ||
28-04020-100 | 4000x2000x200 | 2150 | ||
Hardened Type | 28-01010-020 | 1000x1000x200 | H type 3D Steel Work Table，HV500 | 310 |
28-01212-020 | 1200x1200x200 | 442 | ||
28-01510-020 | 1500x1000x200 | 485 | ||
28-01515-020 | 1500x1500x200 | 673 | ||
28-02010-020 | 2000x1000x200 | 578 | ||
28-02412-020 | 2400x1200x200 | 812 | ||
28-03015-020 | 3000x1500x200 | 1230 | ||
28-04020-020 | 4000x2000x200 | 2150 | ||
Hardened and | 28-01010-120 | 1000x1000x200 | HD type 3D Steel Work Table, hardened surface, HV500, with 4 side mm scale | 310 |
Dimension Type | 28-01212-120 | 1200x1200x200 | 442 | |
28-01510-120 | 1500x1000x200 | 485 | ||
28-01515-120 | 1500x1500x200 | 673 | ||
28-02010-120 | 2000x1000x200 | 578 | ||
28-02412-120 | 2400x1200x200 | 812 | ||
28-03015-120 | 3000x1500x200 | 1230 | ||
28-04020-120 | 4000x2000x200 | 2150 | ||
Super-hard Type | 28-01010-130 | 1000x1000x200 | Super-hard type 3D Steel Work Table, hardened surface HRC60 ,with 4 side mm scale | 310 |
28-01212-130 | 1200x1200x200 | 442 | ||
28-01510-130 | 1500x1000x200 | 485 | ||
28-01515-130 | 1500x1500x200 | 673 | ||
28-02010-130 | 2000x1000x200 | 578 | ||
28-02412-130 | 2400x1200x200 | 812 | ||
28-03015-130 | 3000x1500x200 | 1230 | ||
28-04020-130 | 4000x2000x200 | 2150 |
Other special specifications can be ordered

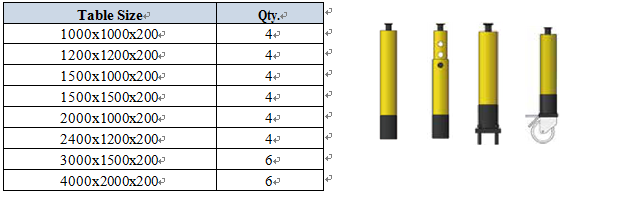

Number of support feet
