Product Details
28 System 3D Expert Line Table
Picture | Part No. | Size(mm) | Description | NW(kg) |

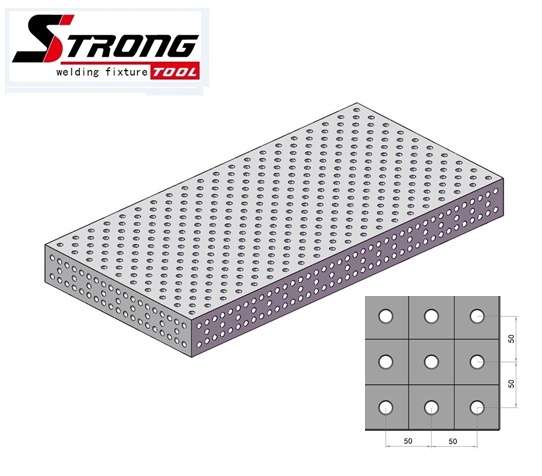

Basic Type | SP28-01010-000 | 1000x1000x200 | B type 3D Steel Work Table，grid hole and line 50x50 | 290 |
SP28-01212-000 | 1200x1200x200 | 380 | ||
SP28-01510-000 | 1500x1000x200 | 415 | ||
SP28-01515-000 | 1500x1500x200 | 530 | ||
SP28-02010-000 | 2000x1000x200 | 500 | ||
SP28-02412-000 | 2400x1200x200 | 690 | ||
SP28-03015-000 | 3000x1500x200 | 1070 | ||
SP28-04020-000 | 4000x2000x200 | 1820 | ||
Dimension Type | SP28-01010-100 | 1000x1000x200 | D type 3D Steel Work Table，with 4 side mm scale | 290 |
SP28-01212-100 | 1200x1200x200 | 380 | ||
SP28-01510-100 | 1500x1000x200 | 390 | ||
SP28-01515-100 | 1500x1500x200 | 530 | ||
SP28-02010-100 | 2000x1000x200 | 500 | ||
SP28-02412-100 | 2400x1200x200 | 710 | ||
SP28-03015-100 | 3000x1500x200 | 1010 | ||
SP28-04020-100 | 4000x2000x200 | 1820 | ||
Hardened Type | SP28-01010-020 | 1000x1000x200 | H type 3D Steel Work Table，hardened surface HV500, grid hole and line 50x50 | 290 |
SP28-01212-020 | 1200x1200x200 | 380 | ||
SP28-01510-020 | 1500x1000x200 | 390 | ||
SP28-01515-020 | 1500x1500x200 | 530 | ||
SP28-02010-020 | 2000x1000x200 | 500 | ||
SP28-02412-020 | 2400x1200x200 | 710 | ||
SP28-03015-020 | 3000x1500x200 | 1010 | ||
SP28-04020-020 | 4000x2000x200 | 1820 | ||
Hardened and | SP28-01010-120 | 1000x1000x200 | HD type 3D Steel Work Table, hardened surface, HV500, with 4 side mm scale | 290 |
Dimension Type | SP28-01212-120 | 1200x1200x200 | 380 | |
SP28-01510-120 | 1500x1000x200 | 390 | ||
SP28-01515-120 | 1500x1500x200 | 530 | ||
SP28-02010-120 | 2000x1000x200 | 500 | ||
SP28-02412-120 | 2400x1200x200 | 710 | ||
SP28-03015-120 | 3000x1500x200 | 1010 | ||
SP28-04020-120 | 4000x2000x200 | 1820 | ||
Super-hard Type | SP28-01010-130 | 1000x1000x200 | Super -hard type 3D Steel Work Table, hardened surface HRC60,with 4 side mm scale | 290 |
SP28-01212-130 | 1200x1200x200 | 380 | ||
SP28-01510-130 | 1500x1000x200 | 390 | ||
SP28-01515-130 | 1500x1500x200 | 530 | ||
SP28-02010-130 | 2000x1000x200 | 500 | ||
SP28-02412-130 | 2400x1200x200 | 710 | ||
SP28-03015-130 | 3000x1500x200 | 1010 | ||
SP28-04020-130 | 4000x2000x200 | 1820 |
Other special specifications can be ordered.

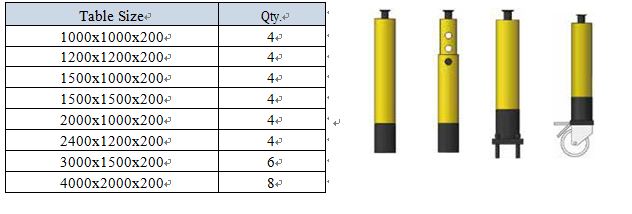

Number of support feet
