Product Details

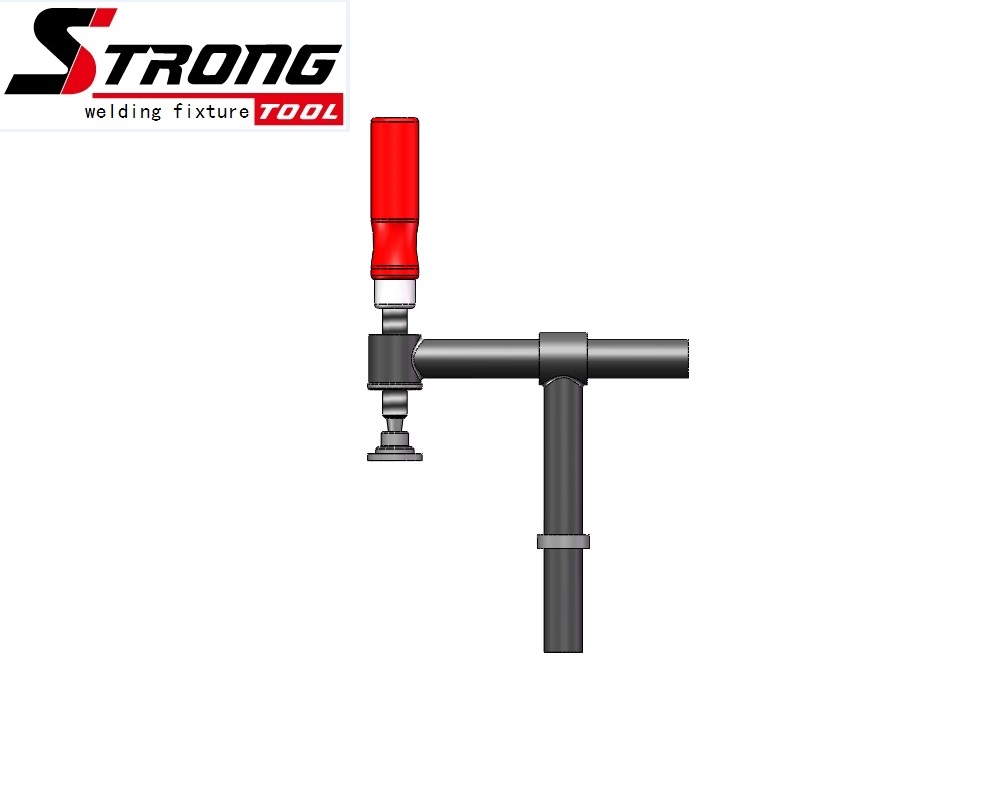

28 System-180° Clamp with Various Handles
 |  | Description - Rubber and plastic screw handle feeling comfortable, non-skid. Oval handle makes more powerful. - Each part can be used separately and recombined to other kinds of clamps. - Handle is replaceable. - Replace with a variety of clamp-pad. - Clamp horizontal & vertical distance are adjustable. |
 |  |

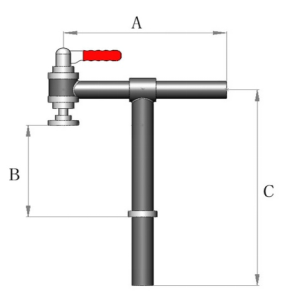

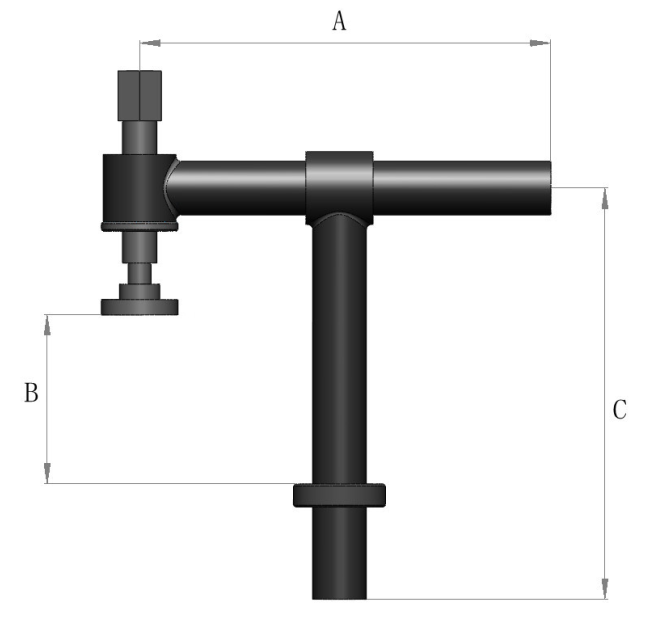

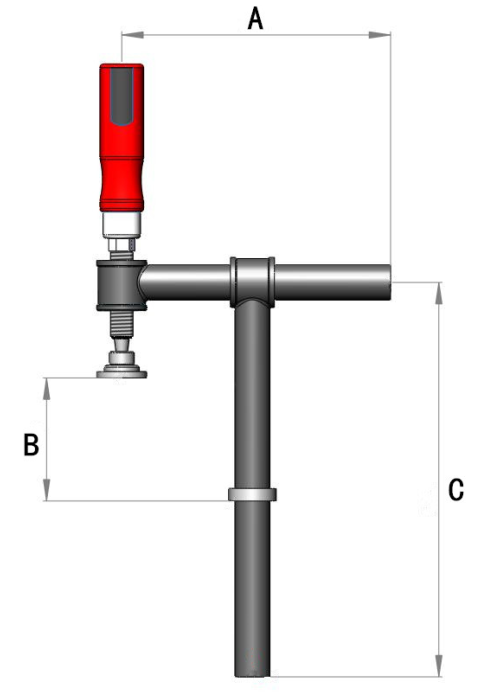

Description | A×B span×C | Kg | Item no. |
Screw Clamp 180°/ 270 | 220×max.140×270 | 2 | 28-85027-000 |
Screw Clamp 180°/ 350 | 220×max.270×350 | 2.38 | 28-85035-000 |
Screw Clamp 180°/ 500 | 220×max.420×500 | 2.81 | 28-85050-000 |
Quick Clamp 180°/ 270 | 220×max.140×270 | 2.23 | 28-85027-001 |
Quick Clamp 180°/ 350 | 220×max.270×350 | 2.6 | 28-85035-001 |
Quick Clamp 180°/ 500 | 220×max.420×500 | 3.03 | 28-85050-001 |
Hex head Clamp 180°/ 270 | 220×max.140×270 | 1.79 | 28-85027-002 |
Hex head Clamp 180°/ 350 | 220×max.270×350 | 2.16 | 28-85035-002 |
Hex head Clamp 180°/ 500 | 220×max.420×500 | 2.59 | 28-85050-002 |
T-Bar Screw Clamp 180°/270 | 220×max.140×270 | 1.79 | 22-85027-003 |
T-Bar Screw Clamp 180°/350 | 220×max.270×350 | 2.16 | 22-85035-003 |
T-Bar Screw Clamp 180°/500 | 220×max.420×500 | 2.59 | 22-85050-003 |
