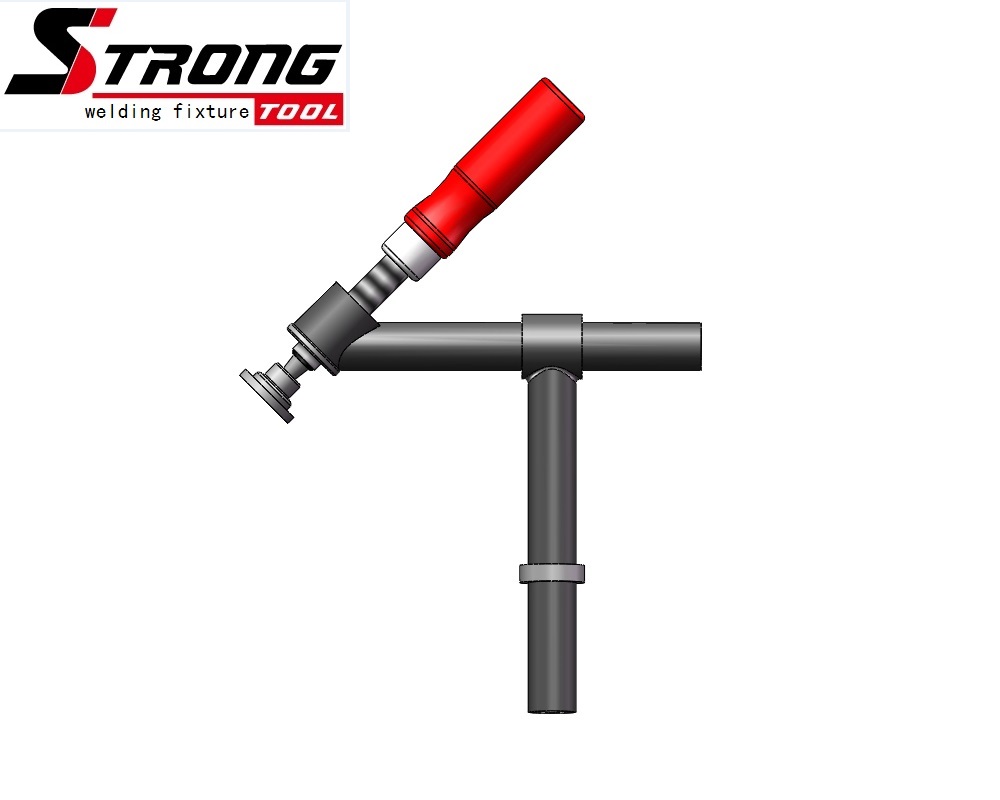

45° Clamp with Various Handles

We chat：3dweldingtableEmail：info@shwgec.com

Product Details

28 System-45° Clamp with Various Handles

Description
- Three forms of handles are available for selection.
- Oval handle makes more powerful.
- Clamp by hex wrench makes much tighter.
- Each part can be used seperately and recombined to other kinds of clamps.
- Handle is replaceable.
- Replace with a variety of clamping pad.
- Clamp horizontal and vertical distances are adjustable.

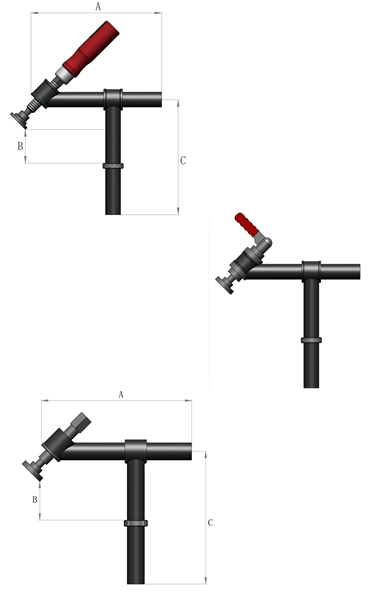

Description	A×B span×C	Kg	Item no.
Screw Clamp 45°with Handle / 270	220×max.140×270	2.02	28-89027-000
Screw Clamp 45°with Handle / 350	220×max.270×350	2.4	28-89035-000
Screw Clamp 45°with Handle / 500	220×max.420×500	2.83	28-89050-000
Quick Clamp 45°/ 270	220×max.140×270	2.24	28-89027-001
Quick Clamp 45°/ 350	220×max.270×350	2.62	28-89035-001
Quick Clamp 45°/ 500	220×max.420×500	3.05	28-89050-001
Hex head Clamp 45°/ 270	220×max.140×270	1.8	28-89027-002
Hex head Clamp 45°/ 350	220×max.270×350	2.18	28-89035-002
Hex head Clamp 45°/ 500	220×max.420×500	2.61	28-89050-002
