Bolt

STQI Bolt

We chat：3dweldingtableEmail：info@shwgec.com

Product Details

28 System-STQI Bolt

Description

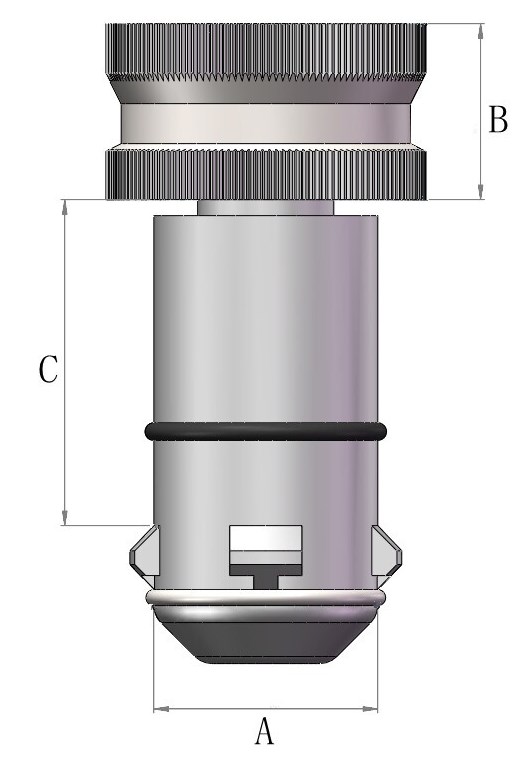

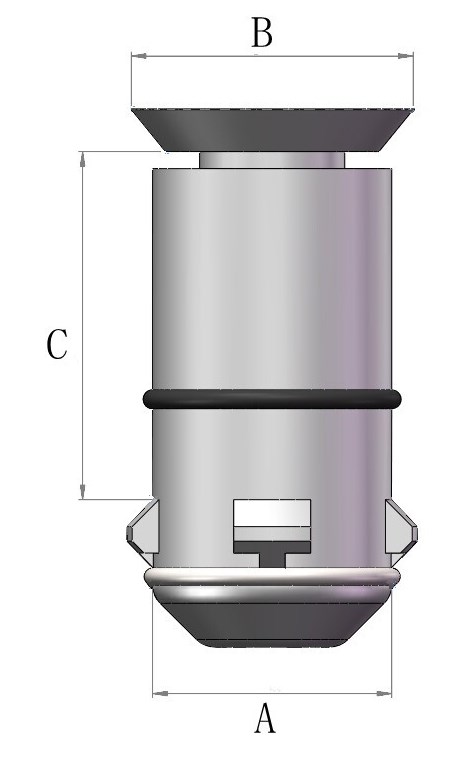

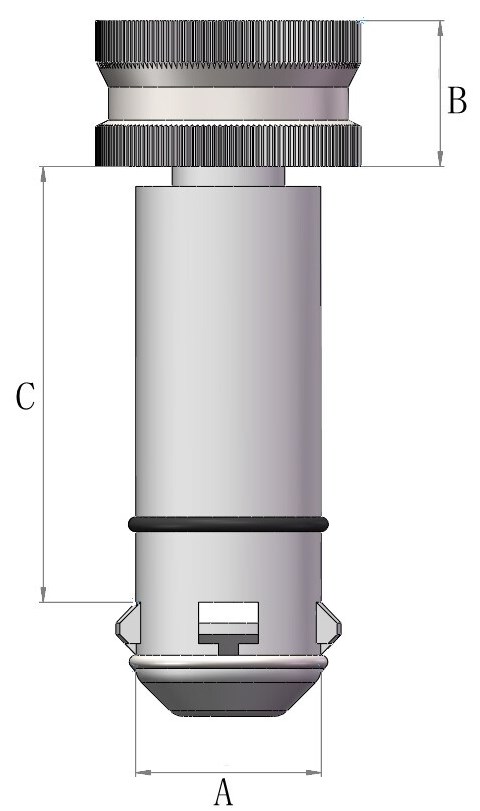

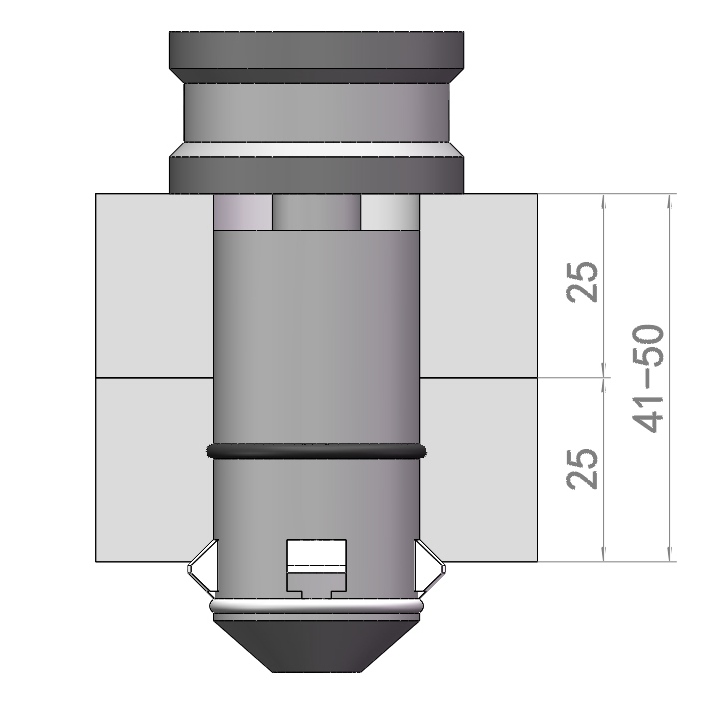

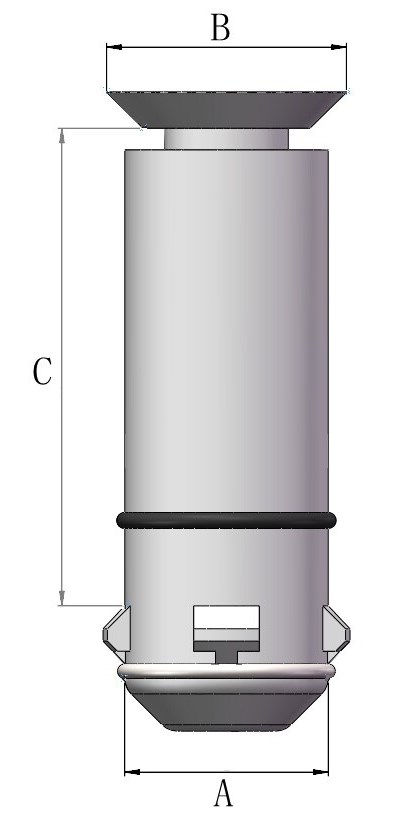

ΦA×B×C

Kg

Item no.

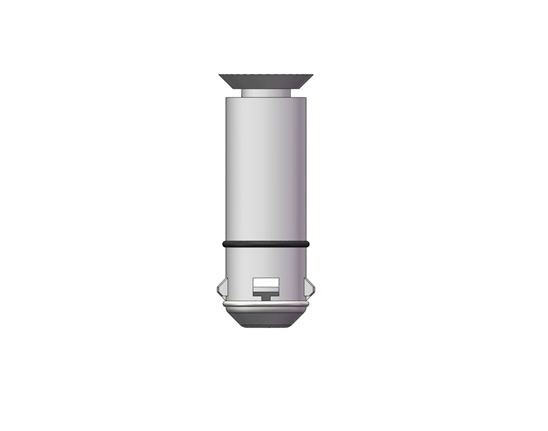

STQI Bolt short

28×20×(41-50)

0.6

28-60041-000

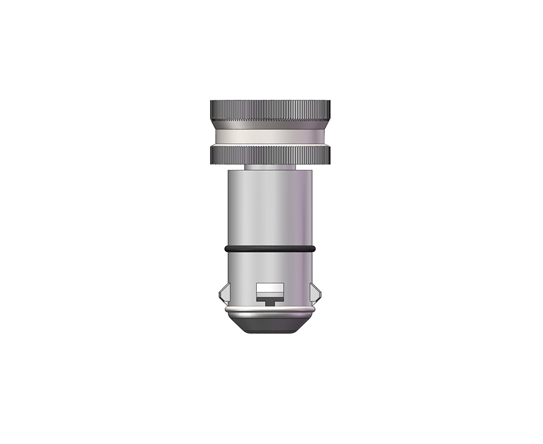

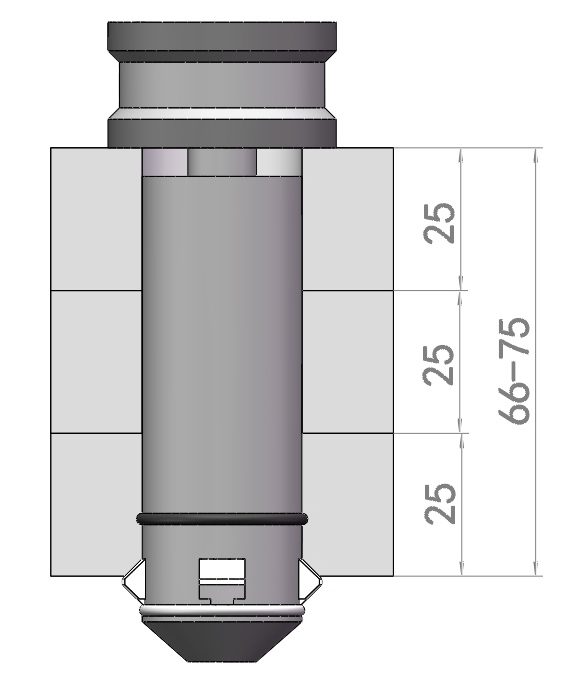

STQI Bolt long

28×20×(66-75)

0.7

28-60041-001

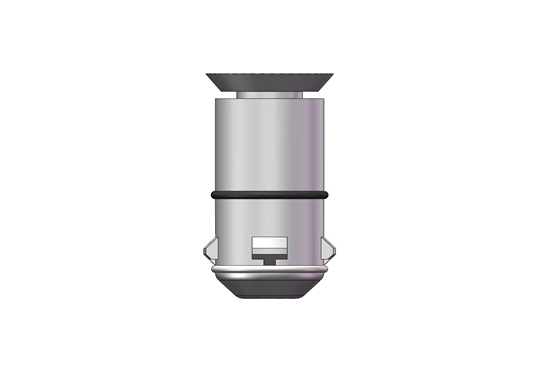

STQI Countersunk   Bolt short

28×31.6×(41-50)

0.4

28-60041-002

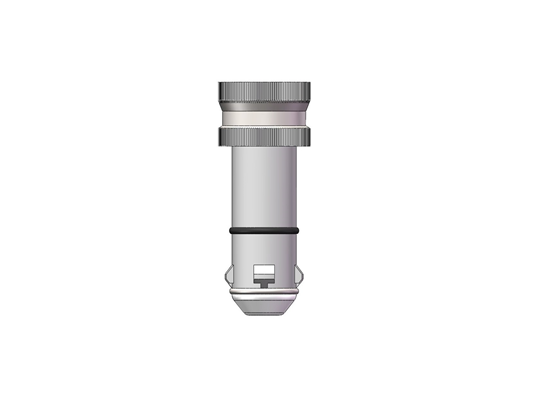

STQI Countersunk   Bolt long

28×31.6×(66-75)

0.5

28-60041-003



Description
- Locate & lock all kinds modules for 28 system holes.
- 4 Cones design makes line contact locking.
- A guide slot allows lock block to move more freely.
- Take away hoop and 4 cones out for easy cleaning.
- No damage to the system bores.
- Can be operated with one hand.
- Clamp by hex wrench SW14/SW8.
- Bolt body is bearing steel material, surface HRC55.




Locking force approx. 25KN

Shearing force approx. 200KN

Tightening torque: 70 Nm
