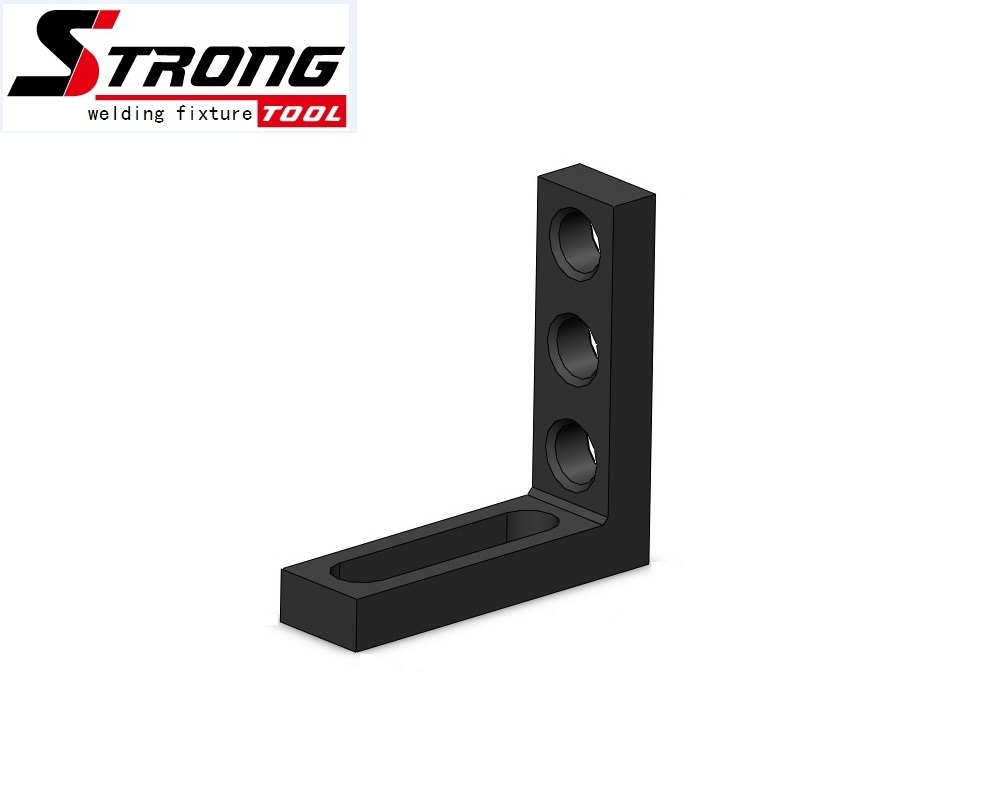

Angle Two Work Sides-2 Sided Locating Angle

- Commonly used angle.

- 2 sided locating and clamping.

- Many D3located options by combining the bores and slot.

- Can be a height adjustable surface by clamping oblong slot.

- Precision scales on either side of a slot.

- Surface hardening treatment.

- Option: Stainless steel, aluminium alloy, Super hardened tool steel HRC60.

- IT7 high precision production.

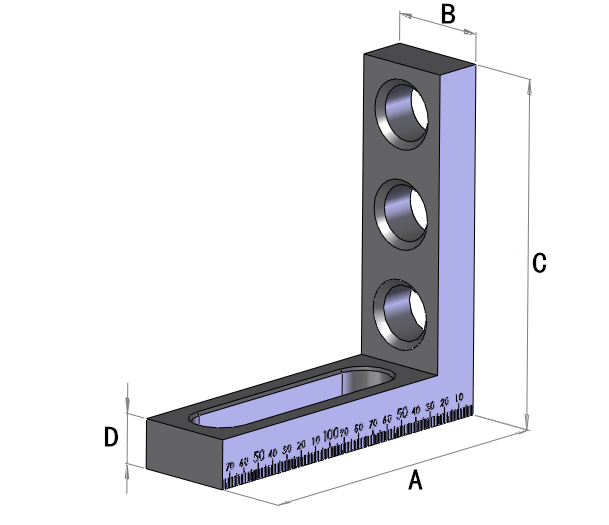

2 Sided Angle   L175 Bores / Slot, surface blackening

175×50×175×25

2.02

28-30175-000

2 Sided Angle   L175 Bores / Slot H, surface hardening

175×50×175×25

2.02

28-30175-020

2 Sided Angle   L175 Bores / Slot with scale and hardening

175×50×175×25

2.02

28-30175-120

2 Sided Angle   L175 Bores / Slot SH with scale and super hardening

175×50×175×25

2.02

28-30175-130

2 Sided Angle   L175 Bores / Slot Al with scale

175×50×175×25

0.7

28-30175-140

2 Sided Angle   L175 Bores / Slot S/S with scale

175×50×175×25

2.02

28-30175-150

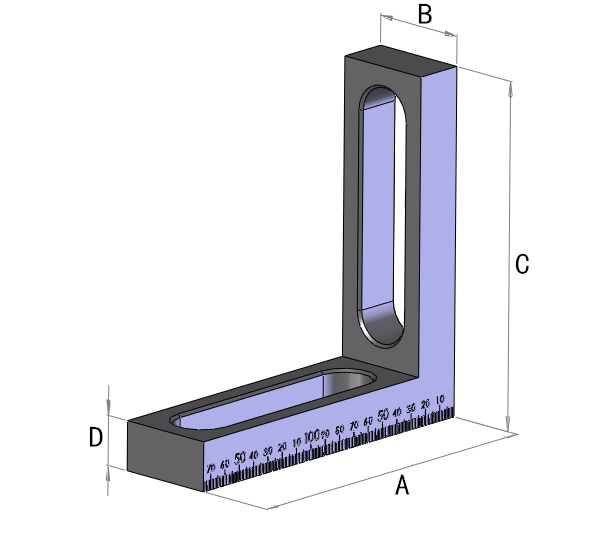

2 Sided Angle   L175 Slot / Slot , surface blackening

175×50×175×25

1.74

28-30175-001

2 Sided Angle   L175 Slot / Slot H, surface hardening

175×50×175×25

1.74

28-30175-021

2 Sided Angle   L175 Slot / Slot with scale and hardening

175×50×175×25

1.74

28-30175-121

2 Sided Angle   L175 Slot / Slot SH with scale and super hardening

175×50×175×25

1.74

28-30175-131

2 Sided Angle   L175 Slot / Slot Al with scale

175×50×175×25

0.6

28-30175-141

2 Sided Angle   L175 Slot / Slot S/S with scale

175×50×175×25

1.74

28-30175-151

2 Sided Angle   L175 Bores / Bores, surface blackening

175×50×175×25

2.34

28-30175-002

2 Sided Angle   L175 Bores / Bores, surface hardening

175×50×175×25

2.34

28-30175-022

2 Sided Angle   L175 Bores / Bores SH, super hardening

175×50×175×25

2.34

28-30175-032

2 Sided Angle   L175 Bores / Bores Al

175×50×175×25

0.8

28-30175-042

2 Sided Angle   L175 Bores / Bores S/S

175×50×175×25

2.34

28-30175-052
